MIL-DTL-24695/2B(SH)
HOSE END PLUG (BOTH ENDS)
12 mm X 1.5 REVERSE BUTTRESS INTERNAL
THREADS (BOTH ENDS) SEE NOTE 2
KNURL TO SUIT HAND
INSTALLATION (BOTH ENDS)
L
8.0 (0.315)
7.7 (0.304)
2.3
(0.091)
3.30 (0.130)
60°
3.24 (0.128)
1.0 (0.039) MINIMUM
2.5
INTERNAL DIA. AFTER
(0.098)
SWAGE WITH 0.5 X 0.5
18.0
(0.02 X 0.02) SLOT
(0.709)
ACROSS DIA. AS SHOWN
MAX.

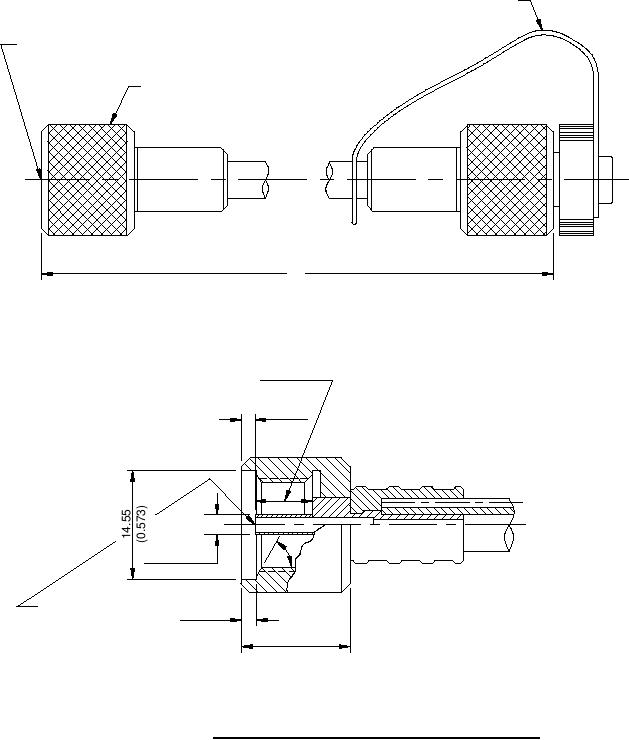

FIGURE 1. Detail of vent and test valve hose assembly end fitting.
